AutoGrip High-Speed Closed Center 2-Jaw Power Chucks

This is one of the most versatile and universally used closed center power chuck types on the market. Autogrip 2P power chucks can be used as a direct replacement for many other domestic and import brands.

Power Chuck Options

  • Wedge Style
  • 2 Jaws
  • Closed Center
  • Even Surface-Hardening
  • Designed For High-Speed Applications
  • 4”–15” Diameters
Model Spindle
Mount		 Plunger
Stroke
(Dia.mm)		 Jaw
Stroke
(Dia.)
(mm)		 Chucking
Dia. Max
(mm)		 Chucking
Dia. Min.
(mm)		 Max.
Draw Bar
Pull
kN
(kgf)		 Max.
Clamping
Force kN
(kgf)		 Max.
Speed
(r.p.m.)		 I
kg-m2		 Weight
(kg)		 Weight
(kg)		 Matching
Cylinder		 Max.
Pressure
MPa
(kgf/cm2)
2P-04   15 6.4 110 5 5.3(540) 14.7(1500) 6000 .01 3.8   RK-75(N)
RA-130		 1.5(15)
.04(4)
2P-05   15 6.4 135 14 5.3(540) 16.7(1700) 5500 .02 5.8   RK-75(N)
RA-130		 1.5(15)
.04(4)
2P-06-A5 A5 20 8.5 165 14 12(1220) 35(3570) 5250 .04 12 13 RK-100(N)
RA-130		 1.7(17)
.04(4)
2P-08-A5 A5 21 8.8 210 17 16.5(1680) 50(5100) 4750 .13 22 26 RK-125(N)
RA-220		 1.5(15)
.04(4)
2P-08-A6 A6 21 8.8 210 17 16.5(1680) 50(5100) 4750 .13 22 25 RK-125(N(
RA-220		 1.5(15).4(4)
2P-10A6 A6 25 8.8 254 22 19.4(1980) 71.5(7300) 4000 .29 33 42 RK-125(N)
RA220		 1.8(18)
.4(4)
2P-10-A8 A8 25 8.8 254 22 19.4(1980) 71.5(7300) 4000 .29 33 40 RK-125(N)
RA220		 1.8(18/
.4(4)
2P-12-A8 A8 30 10.5 304 22 27.4(2800) 103.9(10600) 3360 .70 57 51 RK150(N) 1.7(17)
2P-15-A11 A11 35 16 381 50 54.9(5600) 164.6(16800) 3000 1.70 96 103 RK-200(N) 1.9(19)

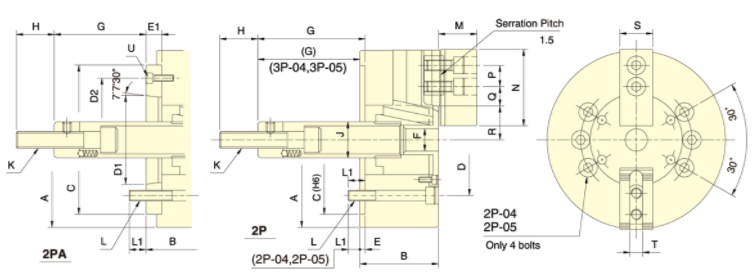

Technical Data

MODEL   A B B C D D1 D2 E E1 F G MAX G MAX G MIN. G MIN. H J
2P-04   110 52   60 80 - - 6 - - 18   3   25 26
2P-05   135 55   80 100 - - 7 - - 18   3   35 28
2P-06 A5 165 74 84 140 104.8 82.56 116 5 15 21 102.6 87.6 82.62 67.6 35 34
2P-08 A5 210 85 103 170 133.4 82.56 104.8 5 23 25 127 104 106 83 36 38
2P-08 A6 210 85 97 170 133.4 106.38 150 5 17 25 127 110 106 89 36 38
2P-10 A6 254 89 109 220 171.4 106.38 133.4 5 25 34 158 133 133 108 36 45
2P-10 A8 254 89 102 220 171.4 139.75 190 5 18 34 158 140 133 115 36 45
2P-12 A8 304 106 118 220 171.4 138.72 190 6 18 34 163 145 133 115 36 50
2P-15 A11 381 114 130 300 253 196.87 260 6 22 - 104 82 69 47 55 60

MODEL   K L L1 L1 M N P Q
MAX.		 Q
MIN..		 R
MAX.		 R
MIN.		 S T U
2P-04   M10X1.5 4-MB 12   24 52 14 11.3 8.3 23.3 20.1 23 10 -
2P-05   M12X1.75 4-MB 14   31 62 14 13.5 6 30.4 27.2 25 10 -
2P-06 A5 M16X2 6-M10 14 14 37 73 20 18.25 9.25 38.25 34 31 12 3-M6
2P-08 A5 M20X2.5 6-M12 20 17 38 95 25 22.3 11.8 46.3 41.9 35 14 6-M10
2P-08 A6 M20X2.5 6-M12 20 18 38 95 25 22.3 11.8 46.3 41.9 35 14 3-M6
2P-10 A6 M20X2.5 6-M16 18 18 43 110 30 30.8 11.3 51.1 46.7 40 16 6-M12
2P-10 A8 M20X2.5 6-M16 18 25 43 110 30 30.3 11.3 51.1 46.7 40 16 6-M8
2P-12 A8 M20X2.5 6-M16 18 25 51 130 30 48.5 12.5 - - 50 18/21 6-M8
2P-15 A11 M30X3.5 6-M20 30 33 63 165 43 48.8 23.3 77.5 69.5 62 25.5 3-M10
